    EURO 5 Lifting EPA Mini Excavator With GPS Satellite Position

    Ask Lasest Price
    Brand Name : None
    Model Number : FW26
    Certification : CE/ISO9001: 2000/EPA/Euro 5/SGS
    Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P, Paypal
    Supply Ability : 5000 Units/Year
    Delivery Time : 3-15 week days
    • Product Details
    • Company Profile

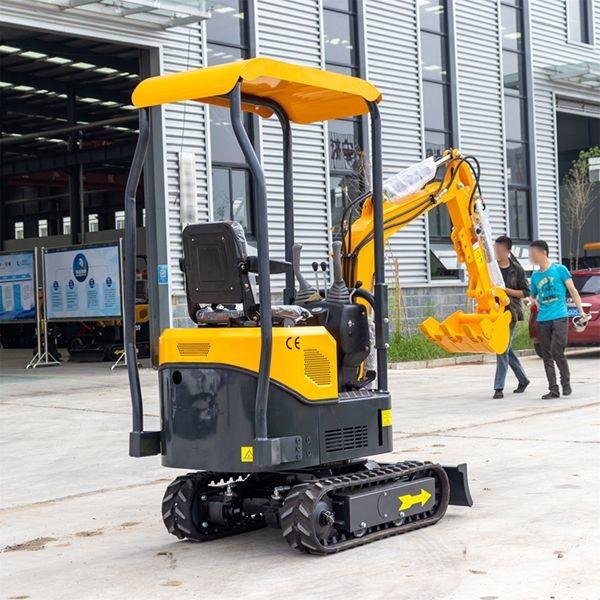

    EURO 5 Lifting EPA Mini Excavator With GPS Satellite Position

    Mini Diggers Excavator CE/EPA/EURO 5 China Wholesale Micro Mini Excavator


    Fullwin Machinery, we support different kinds of Excavator, and Loader, like Mini excavators 0.8t, 1.0t, 1.2t, 1.5t, 1.6t, 1.8t, 2.0t sell pretty well, We also export Mini track loader, crawn mower machine for home use.


    For OEM/ODM, we support private label print logos on machines, we support color customized, and we can do orange, yellow, blue, green, white, and red.
    Welcome your inquiry!


    Specifications:

    Specifications
    Full Vehicle Weight2.74T
    Rated Power15.2/2500kW/rpm
    Swing Speed10rpm
    Ground specific voltage30.5kPa
    Stick digging force14.2kN
    Overall Length4159mm
    Overall Height (boom tip)1636mm
    Track Width250mm
    Minimum Ground Clearance320mm
    Track Grounding Length1600mm
    Max. Digging Height4132mm
    Max. Digging Depth2485mm
    Min. Rotation Radius2096mm
    Bucket Capacity0.08m3
    Walking Speed(Fast/Low)2.0/3.2km/h
    Climbing Ability58%/30°
    Bucket Digging Force:20kN
    Overall Width1550mm
    Overall height (top of cab)2560mm
    Wheel Base1250mm
    Tail Turning Radius775mm
    Track Width2040mm
    Max. Dumping Height2742mm
    Max. Digging Distance4610mm
    Deflection Angle (left/right):47°/74°

    During the past few years, we fullwin machinery research for a new Electrical Excavator as below,


    1. The pure battery (lithium battery) electric excavator is aimed at the BEV new energy vehicle in the automotive industry. It is composed of battery → current → motor controller (electric distribution controller) → motor → power distribution: it.


    1. The (lithium battery) excavator with pure electric battery on the excavator body


    Its characteristics:

    ①Advantages: a. The shape and control form is almost the same as those of fuel excavators. b. Customers have a high degree of acceptance in terms of manipulation. c Easy to move and flexible.


    ② Disadvantages: a. The cost is extremely high, and the customer's cost performance is poorly accepted. b The battery life is short. c High-security requirements. d Requires limited operating conditions.


    This kind of excavator is generally used on special occasions, in places with low-cost requirements and short working hours. Such as remote control use in an emergency or special dangerous goods workplaces.


    Applications:
    The main uses of the excavator: in road construction projects to excavate trenches, in construction projects to excavate the foundation, in water conservancy projects to excavate ditches, canals, and dredging rivers, in quarries, open-pit mining, and other projects for the stripping and excavation of ore, etc.; in addition to gravel, coal and other loose materials can be loaded.


    Operation: After replacing the working device, it can also be used for lifting, pouring, installation, piling, ramming, and pile pulling.




    FAQ
    Q1: Are you an original manufacturer?
    We are a professional manufacturer, we have our own R&D team and sales team, and we provide a one-stop service.

    Q2: What about the warranty time?
    1 year or 2000 hours. We shoulder all costs during the warranty period, including the freight. And we also provide after-sales service support and agricultural technical support

    Q3: What engine you can offer?
    Optional Yanmar, Kubota, Brrigs&Sttraton engine,
    Optional US EPA & Euro stage V engine

    Q4: How can we ensure quality?
    We have a quality control system and also double check supervise team,
    The final inspection is always carried out before the shipment

    Q5: What is your production time or delivery time?
    Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 30-45 days, It depends on the order quantity.

    Q6: What is your payment term?
    Normally we can work on T/T and support 30% payment in advance and the other balance 70% can be paid against COPY B/L.

    Q7: Do you support Customized service?
    Yes, offer me the necessary information, we provide custom-made service to meet the different needs of global clients with different budgets.

    Q8: Do you offer accessories?
    Yes, we have many kinds of accessories for your choice and make the mini excavator in wide usage and more effective.

    Q9: How do you pack the machine if buy one unit?
    Usually, we pack the whole machine with a strong wooden crate.

    Q10: What is your MOQ?
    We support the small orders and our MOQ is 1 unit
    Secondly, during the guarantee period, we will send new lights with new orders for small quantities. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.


    Company Brief Introduction:

    Mini Excavator, Full Energy, You will become a Big Winner!


    Our main hot products include Excavators, Mini Excavators, Electric Excavators, Electric Forklifts, Road Rollers, scissors elevators, forklifts,s and electric forklifts together with other machinery fields. Through these products, our Mini Excavators sell pretty hotly! Like 0.8T, 1.0T, 1.2T, 1.6T, 1.7T, 1.8T, 2.0T, 3.0T, 4T, 5T, 6T, 10T, 20T, 30T Excavators really win customers’ good likes!

    And Also Scissor elevator, like 6 meters, 10 meters, 12 meters really hot as well.

    All Products have obtained ISO9001, CE, SGS, EPA and TUV Certificated.
