Mini Excavator, Full Energy, You will become a Big Winner!
3 Years
| Ask Lasest Price | |
| Brand Name : | None |
| Model Number : | FW35-100 |
| Certification : | CE/ISO9001: 2000/EPA/Euro 5/SGS |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram, D/P, Paypal |
| Supply Ability : | 5000 Units/Year |
| Delivery Time : | 3-15 week days |

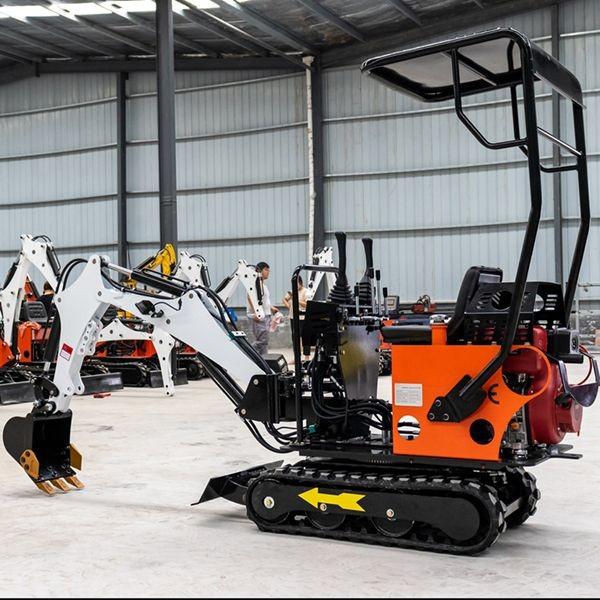

Small Excavator New In Construction Small Excavators For Sale Mini Excavators
1. Before the excavator is started or the operation starts, a signal should be issued; after the engine is started, it is strictly forbidden to stand in the bucket, arm, crawler, and hangar.
2. It is strictly forbidden for anyone to stay in the excavator operation area. It is strictly forbidden for irrelevant personnel to enter the excavator operation room. It is forbidden for anyone to get on and off the machine and transfer objects. It is not allowed to set aside any objects that hinder the operation. It is not allowed to repair and maintain while working.
3. The working position must be flat and fixed. Before working, the crawler should be braked, the tire excavator should be supported on the outrigger, the tire should be off the ground, the direction of the body should be consistent with the extension direction of the excavation face, the shovel should not be too deep during operation, and the bucket should not be too violent.
4. When excavating earthwork with stones on the working face of a high slope, larger stones and sundries should be removed. If the soil is dug into the air and cannot collapse naturally, it needs to be handled manually, and it is strictly forbidden to use the bucket to smash the suspended earth.
5. It is strictly forbidden to use the bucket to hit (break) solid objects. It is also not allowed to use rotary machinery to break solid objects with the bucket. In the case of large rocks or hard objects, they should be removed before operation; it is strictly forbidden to excavate unblasted rocks above grade
Specifications:
| Specifications | |
| Full Vehicle Weight | 4.2T |
| Rated Power | 27.0/2200kW/rpm |
| Swing Speed | 12rpm |
| Ground specific voltage | 36kPa |
| Stick digging force | 21.6kN |
| Overall Length | 5385mm |
| Overall Height(boom tip) | 1890mm |
| Track Width | 350mm |
| Minimum Ground Clearance | 350mm |
| Track Grounding Length | 1710mm |
| Max.Digging Height | 5030mm |
| Max.Digging Depth | 3390mm |
| Min.Rotation Radius | 2406mm |
| Bucket Capacity | 0.17m³ |
| Walking Speed(Fast/Low) | 2.7/4.4km/h |
| Climbing Ability | 58%/30° |
| Bucket Digging Force | 23.7kN |
| Engine | Yanmar |
| Overall Width | 1750mm |
| Overall height(top of cab) | 2455mm |
| Wheel Base | 1400mm |
| Tail Turning Radius | 1561mm |
| Track Width | 2190mm |
| Max.Dumping Height | 3365mm |
| Max.Digging Distance | 5523mm |
Applications:
The main uses of the excavator: in road construction projects to
excavate trenches, in construction projects to excavate the
foundation, in water conservancy projects to excavate ditches,
canals, and dredging rivers, in quarries, open-pit mining and other
projects for the stripping and excavation of ore, etc.; in addition
to gravel, coal and other loose materials can be loaded.
Operation: After replacing the working device, it can also be used
for lifting, pouring, installation, piling, ramming, and pile
pulling.
Company Brief Introduction:
Mini Excavator, Full Energy, You will become a Big Winner!
Our main hot products include Excavators, Mini Excavators, Electric Excavators, Electric Forklifts, Road Rollers, scissors elevators, forklifts,s and electric forklifts together with other machinery fields. Through these products, our Mini Excavators sell pretty hotly! Like 0.8T, 1.0T, 1.2T, 1.6T, 1.7T, 1.8T, 2.0T, 3.0T, 4T, 5T, 6T, 10T, 20T, 30T Excavators really win customers’ good likes!
And Also Scissor elevator, like 6 meters, 10 meters, 12 meters really hot as well.
All Products have obtained ISO9001, CE, SGS, EPA and TUV Certificated.
|
|
