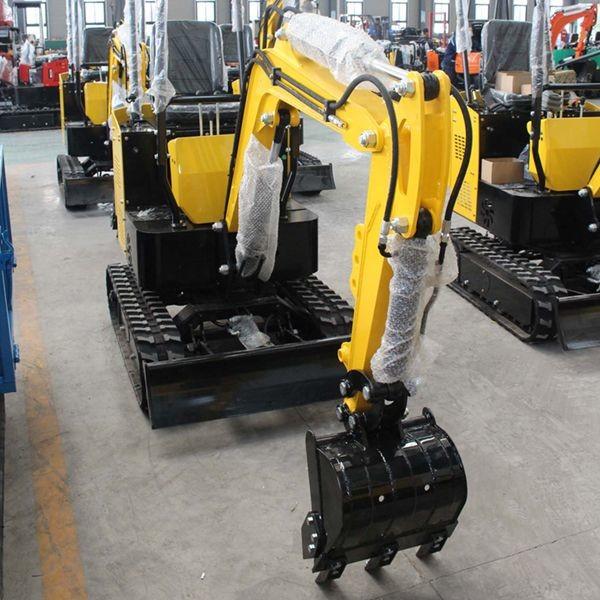

    Euro V Engine Smallest Mini 1.7 T Excavator EPA 990mm Upper Width

    Ask Lasest Price
    Brand Name : None
    Model Number : FW17
    Certification : CE/ISO9001: 2000/EPA/Euro 5/SGS
    Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P, Paypal
    Supply Ability : 5000 Units/Year
    Delivery Time : 3-15 week days
    • Product Details
    • Company Profile

    Euro V Engine Smallest Mini 1.7 T Excavator EPA 990mm Upper Width

    Cheap Mini Digger Smallest Mini Excavator Prices Cheap Mini Excavator China

    1. Before the operator can leave the cab, the bucket must be dropped and the engine turned off.


    2. Do not lift materials with buckets.


    3. When an abnormal operation is found, it should be stopped immediately, and the operation can be continued after troubleshooting.


    4. When the tire excavator is moving on a slope, the bucket should be turned to the side of the high slope.


    5. When using an excavator to demolish a structure, the operator should analyze the collapse direction of the structure, and leave a space for the structure to collapse between the excavator cab and the demolished structure.


    6. The excavator parking site should be flat and solid, and the traveling mechanism must be braked when stopping.

    Specifications:

    Specifications
    Overall Dimension (L*W*H)/Delivery Length4325/1655mm
    axle base(tracklength on ground)1100mm
    Upper width990mm
    Total height2272mm
    Standard track shoe width180mm
    track gauge920mm
    Minimum ground clearance119mm
    Tail turning radius790mm
    Track grounding length1050mm
    Track length1545mm
    Weight1300KG
    Bucket Capacity0.02
    Rated Power10.2KW/2500RPM
    Swing Speed12RMP
    Max. Grade Ability30°
    Max.digging height2580mm
    Max.dumping height1637mm
    Max.digging depth2060mm
    Max.digging distance3160mm
    Min.rotation radius1711mm
    Min.rotation radius Max height2048mm
    EngineeKubotaD722
    ValveChina


    Applications:
    The main uses of the excavator: in road construction projects to excavate trenches, in construction projects to excavate the foundation, in water conservancy projects to excavate ditches, canals and dredging rivers, in quarries, open-pit mining and other projects for the stripping and excavation of ore, etc.; in addition to gravel, coal and other loose materials can be loaded.


    Operation: After replacing the working device, it can also be used for lifting, pouring, installation, piling, ramming and pile pulling.



    Our Service:

    We support OEM/ODM service, we have professional develop research department, like designs, colors, and also products all can be acceptable customized, we have 3 times supervise on quality control through production line before send out. And quality and service is our first principle of company.We keep 12 months warranty, beyond the warranty period, all spare parts offered to you with our cost price (not including freight).By the way, we support 24Hour customer service by email or phone. Please feel free to contact, we are willing to become your friend and business partner.


    FAQ
    Q1:Are you original manufacturer?
    We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.

    Q2:What about the warranty time?
    1 year or 2000 hours. We shoulder all costs during the warranty period, include the freight. And we also provide after-sales service support andagricultural technical support

    Q3:What engine you can offer?
    Optional Yanmar, Kubota, Brrigs&Sttraton engine,
    Optional US EPA & Euro stage V engine

    Q4:How can we ensure quality?
    We have quality control sysmterm and also double check supervise team,
    The final inspection is always carried out before shipment

    Q5:What is your production time or delivery time?
    Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 30-45 days,It depend on the order quantity.

    Q6:What is your payment term?
    Normally we can worked on T/T and support 30% payment in advanced and the other balance 70% can be paid against COPY B/L.

    Q7:Do you support Customized service?
    Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.

    Q8:Do you offer the accessories ?
    Yes, we have many kinds of accessories for your choice and make the mini excavator in a wide usage and more effective.

    Q9:How do you pack the machine if buy one unit?
    Usually we pack the whole machine with the strong wooden crate.

    Q10:What is your MOQ?
    We support th small order and our MOQ is 1 unit
    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
