Mini Excavator, Full Energy, You will become a Big Winner!
3 Years
| Ask Lasest Price | |
| Brand Name : | None |
| Model Number : | FW18 |
| Certification : | CE/ISO9001: 2000/EPA/Euro 5/SGS |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram, D/P, Paypal |
| Supply Ability : | 5000 Units/Year |
| Delivery Time : | 3-15 week days |

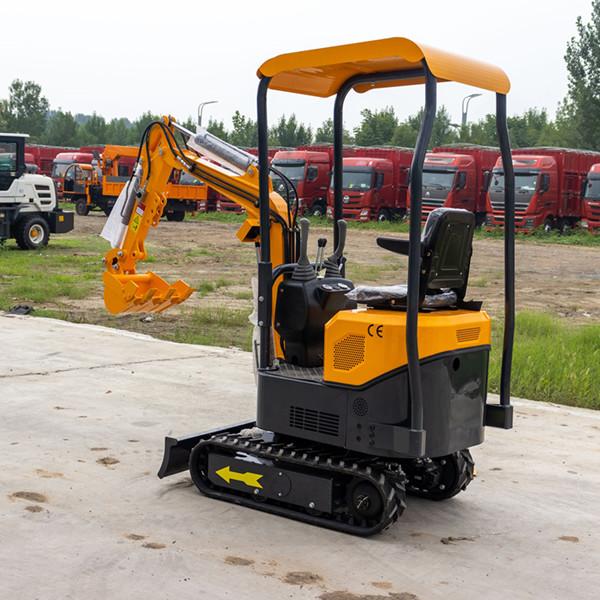

Hydraulic Mini Excavator Mini Digger Loader Bagger With Competitive Prices
How long will our price be valid?
A: We are a tender and friendly supplier, never greedy for a
windfall profit. Basically, our price remains stable throughout the
year. We only adjust our price based on two situations:
(1) The rate of USD: RMB varies significantly according to the
international currency exchange rates.
(2) Manufacturers/Factories adjusted the machine price, because of
the increasing labor cost, and raw material costs.
A: We are a tender and friendly supplier, never greedy for a
windfall profit. Basically, our price remains stable throughout the
year. We only adjust our price based on two situations:
(1) The rate of USD: RMB varies significantly according to the
international currency exchange rates.
(2) Manufacturers/Factories adjusted the machine price, because of
the increasing labor cost, and raw material costs.
Specifications:
| Specifications | |
| Overall Dimension (L*W*H)/Delivery Length | 4335/1665mm |
| axle base(track length on ground) | 1100mm |
| Upper width | 990mm |
| Total height | 2272mm |
| Standard track shoe width | 180mm |
| track gauge | 930mm |
| Minimum ground clearance | 119mm |
| Tail turning radius | 800mm |
| Track grounding length | 1050mm |
| Track length | 1545mm |
| Weight | 1550KG |
| Bucket Capacity | 0.025m³ |
| Rated Power | 10.2KW/2500RPM |
| Swing Speed | 12RMP |
| Max. Grade Ability | 30° |
| Max. digging height | 2580mm |
| Max. dumping height | 1650mm |
| Max. digging depth | 2080mm |
| Max. digging distance | 3180mm |
| Min. rotation radius | 1711mm |
| Min. rotation radius Max height | 2048mm |
| Engine | KubotaD722 |
| Valve | China |
Notices:
1. Inspection should be carried out before operation to confirm
that there are no obstacles and other personnel within the moving
range of the boom and bucket, and the operation can be started only
after sounding the alarm.
2. When digging grooves, the slopes and soil should be placed
according to the requirements of safety technical disclosure, and
it is strictly forbidden to dig under the fuselage.
3. When loading the truck, it should be carried out after the
transport vehicle is stopped, the bucket should be lowered as much
as possible, and the vehicle should not be smashed. It is strictly
forbidden for the bucket to go over the top of the cab of the car.
4. When walking, the arm should be parallel to the crawler, and the
slewing mechanism should be braked. The bucket should be 1m away
from the ground. The walking gradient shall not exceed the maximum
allowable gradient of the machine, drive downhill at a slow speed,
and it is strictly forbidden to slide in neutral gear. Turning
should not be too hasty, and padding should be reinforced when
passing through soft ground.
5. Before the operator can leave the cab, the bucket must be
dropped and the engine turned off.
6. Do not lift materials with buckets.
7. When an abnormal operation is found, it should be stopped
immediately, and the operation can be continued after
troubleshooting.
8. When the tire excavator is moving on a slope, the bucket should
be turned to the side of the high slope.
9. When using an excavator to demolish a structure, the operator
should analyze the collapse direction of the structure, and leave a
space for the structure to collapse between the excavator cab and
the demolished structure.
10. The excavator parking site should be flat and solid, and the
traveling mechanism must be braked when stopping.
Our Service:
We support OEM/ODM service, and we have a professional development research department, designs, colors, and also products all can be acceptable and customized, we have 3 times to supervise quality control through the production line before sending out. And quality and service is the first principle of the company. We keep 12 months warranty, beyond the warranty period, and all spare parts are offered to you at our cost price (not including freight). By the way, we support 24Hour customer service by email or phone. Please feel free to contact us, we are willing to become your friend and business partner.
Applications:
The main uses of the excavator: in road construction projects to
excavate trenches, in construction projects to excavate the
foundation, in water conservancy projects to excavate ditches,
canals and dredging rivers, in quarries, open-pit mining and other
projects for the stripping and excavation of ore, etc.; in addition
to gravel, coal and other loose materials can be loaded.
Operation: After replacing the working device, it can also be used
for lifting, pouring, installation, piling, ramming and pile
pulling.
|
|
