Mini Excavator, Full Energy, You will become a Big Winner!
3 Years
| Ask Lasest Price | |
| Brand Name : | None |
| Model Number : | FWML525 |
| Certification : | CE/ISO9001: 2000/EPA/Euro 5/SGS |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram, D/P, Paypal |
| Supply Ability : | 5000 Units/Year |
| Delivery Time : | 3-15 week days |

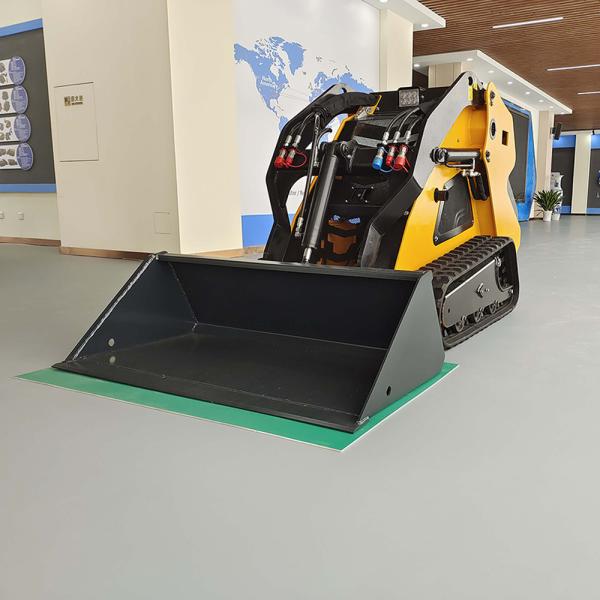

Support OEM And ODM New Arrival Walk Behind Mini Skid Steer Loader
Specifications:
| DIMENSIONS | |
| Angle of Departure | 19° |
| Carry Position | 206 mm |
| Dump Angle @ Maximum Height | 36° |
| Dump Height with Standard Bucket | 1272 mm |
| Dump Reach @ Maximum Height | 815 mm |
| Ground Clearance | 159 mm |
| Ground Clearance-under platform | 180 mm |
| Height to Bucket Hinge Pin | 1883 mm |
| Height | 1352 mm |
| Length without Attachment | 1976 mm |
| Length with Standard Bucket | 2637 mm |
| Operating Height | 2649 mm |
| Rollback @ carry | 22° |
| Rollback Fully | Raised |
| Maximum | 94° |
| Ground Contact Length | 918 mm |
| Turning Radius with Standard Bucket | 1593 mm |
| Width | 1104 mm |
| Wheel Tread (over | 904 mm |
| Width with 36" Bucket | 1250 mm |
| Operating Capacity (35%) | 291 kg |
| Operating Capacity (50%) | 416 kg |
| Tipping Capacity | 832 kg |
| Weight (no attachment) | 1069 kg |
| Travel Speed | 5.6 km/h |
| Make/Model | Kubota // D1105-EF02 |
| Fuel/Cooling | Diesel/Liquid |
| Horsepower (SAE Gross) | 18.2kW |
| Maximum Governed RPM | 3000 RPM |
| Torque @ 2200 RPM (SAE Net) | 71.5 Nm |
| Number of Cylinders | 3 |
| Displacement | 1.1L |
| Bore/Stroke | 78mm/78.4 mm |
| Fuel Consumption | 6.1 L/h |
| Lubrication | Gear Pump Pressure |
| Crankcase Ventilation | Closed |
| Air Cleaner | Dry replaceable cartridge with safety element |
| Ignition | Diesel-Compression |
| Engine Coolant | Propylene glycol/water mix (53%-47%) with freeze protection to -37°C Starting Aid |
| Starting Aid | Glow plugs |
| Alternator | Belt Driven; 40 amps; Open |
| Battery | 12 V；45Ah |
| Starter | 12 volt；Gear Reduction Type；1.4 kW |
| Pump Type | Engine driven, Two Gear type |
Quick Detail:
1. Powerful Engine, KOOP diesel engine/Euro V engine/EPA certified
gasoline /Kubota engine for your choices;
2. Adopt the famous hydraulic Shut-off valve;
3. The boom and the bulldozer oil cylinder are equipped with
high-strength cast steel protective plates;
4. Dig-to-blade and dozer float features are easy to clean up;
5. Strong lift and dig performance helps you to get the job done
faster;
6. Auger, grab, hydraulic hammer, and narrow bucket can be
installed;
7. Hydraulic pilot operation is more flexible and convenient.
Applications:
The main uses of the excavator: in road construction projects to
excavate trenches, in construction projects to excavate the
foundation, in water conservancy projects to excavate ditches,
canals, and dredging rivers, in quarries, open-pit mining and other
projects for the stripping and excavation of ore, etc.; in addition
to gravel, coal and other loose materials can be loaded.
Operation: After replacing the working device, it can also be used
for lifting, pouring, installation, piling, ramming, and pile
pulling.
Our Service:
We support OEM/ODM service, we have professional develop research department, like designs, colors, and also products all can be acceptable customized, we have 3 times supervise on quality control through production line before send out. And quality and service is our first principle of company.We keep 12 months warranty, beyond the warranty period, all spare parts offered to you with our cost price (not including freight).By the way, we support 24Hour customer service by email or phone. Please feel free to contact, we are willing to become your friend and business partner.
|
|
