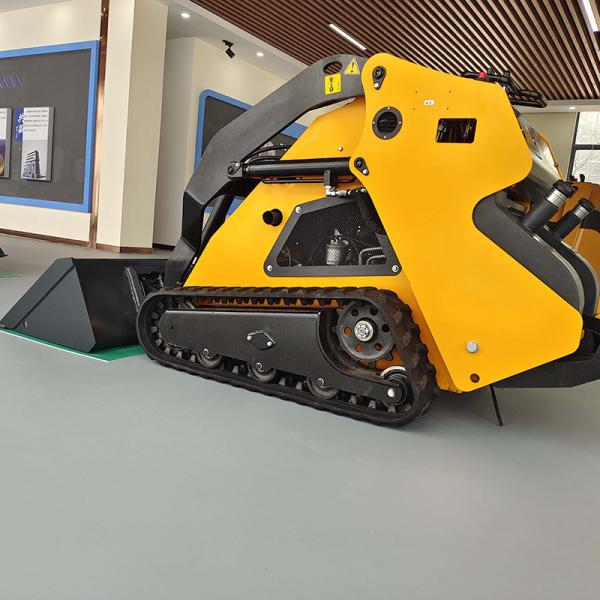

Best Quality Wheel Skid Steer Crawler Loader Mini Diesel Skid Steers
Quick Detail:
1. Powerful Engine, KOOP diesel engine/Euro V engine/EPA certified
gasoline /Kubota engine for your choices;
2. Adopt the famous hydraulic Shut-off valve;
3. The boom and the bulldozer oil cylinder are equipped with
high-strength cast steel protective plates;
4. Dig-to-blade and dozer float features are easy to clean up;
5. Strong lift and dig performance helps you to get the job done
faster;
6. Auger, grab, hydraulic hammer, and narrow bucket can be
installed;
7. Hydraulic pilot operation is more flexible and convenient.
Specifications:
| DIMENSIONS | |
| Angle of Departure | 19° |
| Carry Position | 206 mm |
| Dump Angle @ Maximum Height | 36° |
| Dump Height with Standard Bucket | 1272 mm |
| Dump Reach @ Maximum Height | 815 mm |
| Ground Clearance | 159 mm |
| Ground Clearance-under platform | 180 mm |
| Height to Bucket Hinge Pin | 1883 mm |
| Height | 1352 mm |
| Length without Attachment | 1976 mm |
| Length with Standard Bucket | 2637 mm |
| Operating Height | 2649 mm |
| Rollback @ carry | 22° |
| Rollback Fully | Raised |
| Maximum | 94° |
| Ground Contact Length | 918 mm |
| Turning Radius with Standard Bucket | 1593 mm |
| Width | 1104 mm |
| Wheel Tread (over | 904 mm |
| Width with 36" Bucket | 1250 mm |
| Operating Capacity (35%) | 291 kg |
| Operating Capacity (50%) | 416 kg |
| Tipping Capacity | 832 kg |
| Weight (no attachment) | 1069 kg |
| Travel Speed | 5.6 km/h |
| Make/Model | Kubota // D1105-EF02 |
| Fuel/Cooling | Diesel/Liquid |
| Horsepower (SAE Gross) | 18.2kW |
| Maximum Governed RPM | 3000 RPM |
| Torque @ 2200 RPM (SAE Net) | 71.5 Nm |
| Number of Cylinders | 3 |
| Displacement | 1.1L |
| Bore/Stroke | 78mm/78.4 mm |
| Fuel Consumption | 6.1 L/h |
| Lubrication | Gear Pump Pressure |
| Crankcase Ventilation | Closed |
| Air Cleaner | Dry replaceable cartridge with safety element |
| Ignition | Diesel-Compression |
| Engine Coolant | Propylene glycol/water mix (53%-47%) with freeze protection to -37°C Starting Aid |
| Starting Aid | Glow plugs |
| Alternator | Belt Driven; 40 amps; Open |
| Battery | 12 V；45Ah |
| Starter | 12 volt；Gear Reduction Type；1.4 kW |
| Pump Type | Engine-driven, Two Gear type |
Applications:
The main uses of the excavator: in road construction projects to
excavate trenches, in construction projects to excavate the
foundation, in water conservancy projects to excavate ditches,
canals, and dredging rivers, in quarries, open-pit mining and other
projects for the stripping and excavation of ore, etc.; in addition
to gravel, coal and other loose materials can be loaded.
Operation: After replacing the working device, it can also be used
for lifting, pouring, installation, piling, ramming, and pile
pulling.
