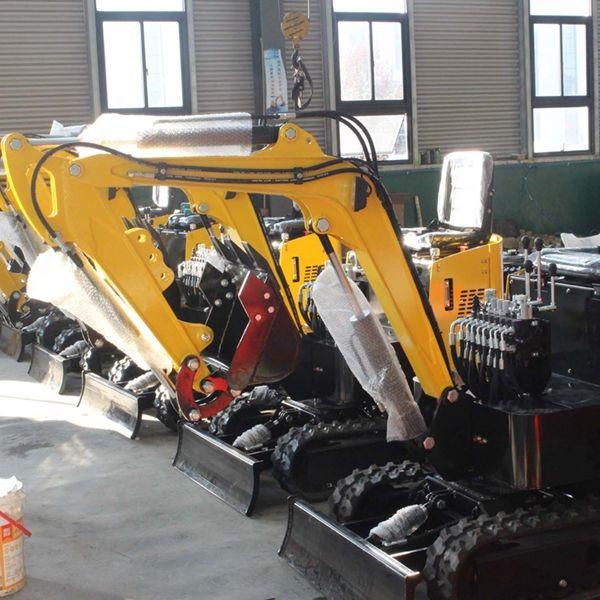

    Small Household Towable Mini Excavator Hydraulic Transmission

    Ask Lasest Price
    Brand Name : None
    Model Number : FW08A
    Certification : CE/ISO9001: 2000/EPA/Euro 5/SGS
    Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P, Paypal
    Supply Ability : 5000 Units/Year
    Delivery Time : 3-15 week days
    • Product Details
    • Company Profile

    Small Household Towable Mini Excavator Hydraulic Transmission

    0.8T Mini Excavator Price Small Household Towable Digger

    Hydraulic Transmission 0.8T Mini Excavator Price Small Household Towable Digger


    Specifications:

    Performance Parameter
    Rated Power7kw-7.5kw
    Bucket Capacity0.025
    Bucket Width300mm
    Engine ModelKoop192f
    Optional EngineBriggs&Stratton
    Opeating Weight800kg
    Pump FormSingle Gear Pump
    Set Working Pressure14Mpa
    Swing Speed12rpm
    Travel Speed2.2Km/h
    Gradeability30°
    Ground Pressure19Kpa
    Max. Digging Force7.5Kn
    Dimensions
    Total Width720-780mm
    Total Height1300mm
    Total Length2430mm
    Min.Ground Clearance80mm
    Track Ground Length1140mm
    Track Width150mm
    Working Range
    Max.Digging Distance2450mm
    Max.Digging Depth1200mm
    Max.Digging Height2350mm
    Max.Dumping Height1600mm
    Min.Swing Radius1100mm
    Max.upgrade Height of Bulldozer Blade120mm
    Max.Digging Depth of Bulldozer Blade200mm

    Notices:

    1. Inspection should be carried out before operation to confirm that there are no obstacles and other personnel within the moving range of the boom and bucket, and the operation can be started only after sounding the alarm.


    2. When digging grooves, the slopes and soil should be placed according to the requirements of safety technical disclosure, and it is strictly forbidden to dig under the fuselage.


    3. When loading the truck, it should be carried out after the transport vehicle is stopped, the bucket should be lowered as much as possible, and the vehicle should not be smashed. It is strictly forbidden for the bucket to go over the top of the cab of the car.


    4. When walking, the arm should be parallel to the crawler, and the slewing mechanism should be braked. The bucket should be 1m away from the ground. The walking gradient shall not exceed the maximum allowable gradient of the machine, drive downhill at a slow speed, and it is strictly forbidden to slide in neutral gear. Turning should not be too hasty, and padding should be reinforced when passing through soft ground.


    5. Before the operator can leave the cab, the bucket must be dropped and the engine turned off.


    6. Do not lift materials with buckets.


    7. When abnormal operation is found, it should be stopped immediately, and the operation can be continued after troubleshooting.


    8. When the tire excavator is moving on a slope, the bucket should be turned to the side of the high slope.


    9. When using an excavator to demolish a structure, the operator should analyze the collapse direction of the structure, and leave a space for the structure to collapse between the excavator cab and the demolished structure.


    10. The excavator parking site should be flat and solid, and the traveling mechanism must be braked when stopping.


    Applications:

    The main uses of the excavator: in road construction projects to excavate trenches, in construction projects to excavate the foundation, in water conservancy projects to excavate ditches, canals and dredging rivers, in quarries, open-pit mining and other projects for the stripping and excavation of ore, etc.; in addition to gravel, coal and other loose materials can be loaded.


    Operation: After replacing the working device, it can also be used for lifting, pouring, installation, piling, ramming and pile pulling.
