Chinese Hydraulic Crawler Digger Excavator Lightweight

    Buy cheap Chinese Hydraulic Crawler Digger Excavator Lightweight from wholesalers

    Buy cheap Chinese Hydraulic Crawler Digger Excavator Lightweight from wholesalers
    • Buy cheap Chinese Hydraulic Crawler Digger Excavator Lightweight from wholesalers
    • Buy cheap Chinese Hydraulic Crawler Digger Excavator Lightweight from wholesalers
    • Buy cheap Chinese Hydraulic Crawler Digger Excavator Lightweight from wholesalers
    • Buy cheap Chinese Hydraulic Crawler Digger Excavator Lightweight from wholesalers
    • Buy cheap Chinese Hydraulic Crawler Digger Excavator Lightweight from wholesalers
    • Buy cheap Chinese Hydraulic Crawler Digger Excavator Lightweight from wholesalers

    Chinese Hydraulic Crawler Digger Excavator Lightweight

    Ask Lasest Price
    Brand Name : None
    Model Number : FW10B
    Certification : CE/ISO9001/SGS/EPA/Euro 5
    Payment Terms : L/C, D/P, T/T, Western Union, D/A, MoneyGram
    Supply Ability : 5000 Units/Year
    Delivery Time : 5-8 work days
    MOQ : 1Unit
    • Product Details
    • Company Profile

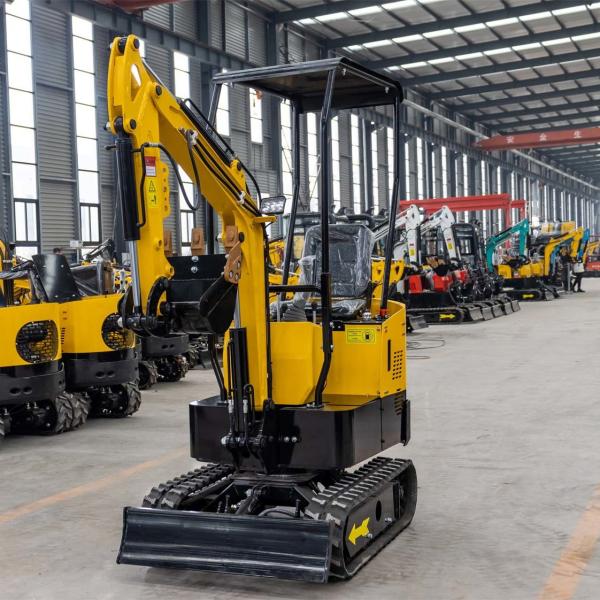

    Chinese Hydraulic Crawler Digger Excavator Lightweight

    Chinese High Quality Hydraulic Crawler Digger Excavator For Sale

    The small excavator has a unique advantage because of its low price, lightweight, convenient maintenance, and repair. Due to its compact size, flexibility, versatility, and high efficiency, it is very popular among users.


    Wide applicability. The digging volume is small and flexible, which is very suitable for various pipeline excavations, foundation construction, public utilities, and house maintenance operations in towns and cities. The small size and special design make it possible to work in an environment where large excavators cannot be constructed.


    Specification
    ModelFW10B
    Weight1000kg
    Digging Bucket Capacity0.025cbm/120kg
    Bucket Width380m
    Enginekoop192f
    Optional Enginebriggs&stratton yanmar
    Bore Strokesingle cylinder ,fan cool
    Rated Power7kw/3000r/min
    Main Pumpg5-6
    Displacement6.8ml/r
    Swing Motorsanyang(bmrs-250)
    Traveling Motorsanyang(bmrs-245)
    Travel Speed1.5km/h
    main demensions
    Overall Dimension (L*W*H)2775*930*2219mm
    Wheelbase910mm
    Total Length Of Track1230mm
    Platform Ground Clearance380mm
    Platform Back Turning Radius784mm
    Chassis Width896mm
    Track Width180mm
    Chassis Ground Clearance132mm
    Track Height320mm
    Operating range
    max.digging depth1750mm
    max.vertical digging depth1375mm
    max.digging height2610mm
    max.dumping height1850mm
    max.digging radius on ground2850mm
    min.rotation radius1330mm
    max.upgrade height of bulldozer blade345mm
    max.digging depth of bulldozer blade255mm

    Qingdao Fullwin Machinery Co.,Ltd.Established in 2012, which a professional dedicated manufacture of construction machinery and equipment, which is afiliated to HongKong Hope LLC.


    Our headquartered is in Hongkong, export department is located in Qingdao. Factory is located in Jining, where we have about 9876㎡,and 2000 people work here.


    The main hot products including mini excavators, electric excavators, road roller and other machinery fields. All products has obtained ISO9001, CE, SGS, TUV certificated.


    R&D, innovation and service are the principles of fullwin. Fullwin products have been exported to Europe, America, Australia, Southeast Asia, India, Russia, Iran and other countries, and won the unanimous praise of customers.

    Q1. Are you a manufacturer?
    A: Yes, we are a factory with more than 10 years of manufacturing experience.

    Q2. What are your terms of payment?
    A: T/T 30% as deposit,and 70% before delivery. Well, show you the photos of the products and packages before paying the balance.

    Q3. What are your terms of delivery?
    A: EXW,FOB,CFR,CIF.

    Q4. How about your delivery time?
    A: Generally, it will take 7-10 working days after receiving your advance
    payment. The specific delivery time depends on the items and the quantity of your order.https://qingdaoperfect.en.made-in-china.com/product-list-1.html

    Q5. What are your terms of packing?
    A: Generally, we use standard exported wooden cases for LCL goods and fixed well for FCL goods.

    Q6. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery.


    Q7. How do you make our business a long-term and good relationship?
    A: 1. We keep good quality and competitive price to ensure our customer's benefits;
    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
