Mini Excavator, Full Energy, You will become a Big Winner!
3 Years
| Ask Lasest Price | |
| Brand Name : | FULLWIN |
| Model Number : | FW18J |
| Certification : | EPA/EURO5 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 5000 Units/Year |
| Delivery Time : | 12-25 days |
1.8 T Excavator Farm Ranch Home Construction Projects 3969LBS Crawler Digger
Features:
1. Compact model, 1.8T/3969LBS
2. Jobsites: farm, ranch, home construction, etc.
3. Hydraulic crawler digger
Description:
1. Simple maintenance, rear door
2. Free swing boom, left 75°/ right 45°
3. Extendable tracks from 1050-1350mm
4. Customize exclusive colors free for you
5. Comfortable and simple operation
6. Machine weight is 1.55T/1550KG/3418LBS, and operating weight is 1.8T/1800KG/3969LBS
7. Help your tasks finished easily, such as farm, ranch, home construction projects
Specifications:
| Performance | |
| Diesel Engine | KUBOTA D722 |
| No. of Cylinders | 3 |
| Rated Power | 10.2KW/2500RPM |
| Emission Standard | EPA/EURO5 |
| System Pressure | 20MPa |
| Standard Bucket Capacity | 0.025CBM |
| Standard Bucket Width (with teeth) | 400mm |
| Swing Speed | 11-13RPM |
| Gradeability | 30° |
| Max. Bucket Digging Force | 9KN |
| Max. Stick Digging Force | 5.5KN |
| Operation Range | |
| Max. Digging Height | 2955mm |
| Max. Dumping Height | 2077mm |
| Max. Digging Depth | 2017mm |
| Max. Vertical Digging Depth | 1610mm |
| Max. Digging Radius | 3529mm |
| Max. Lifting Height of Bulldozer Blade | 236mm |
| Max. Cutting Depth of Bulldozer Blade | 229mm |
| Dimensions | |
| Length | 3329mm |
| Width | 1100mm |
| Height with Cabin | 2267mm |
| Axis Distance | 1190mm |
| Gauge | 790mm |
| Min. Ground Clearance | 153mm |
FAQ:
1. What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. How about your delivery time?
Usually, we have some stock for trial or small orders, so just deliver within 7 days, while 15–25 days for
large orders and customized products.
3. How about payment?
100% T/T in advance before shipment.
4. Do you provide samples? Is it free or extra?
Yes, we could offer the sample, but it's not free.
5. Could you make it according to our special requirements?
Of course, please tell us your ideas.

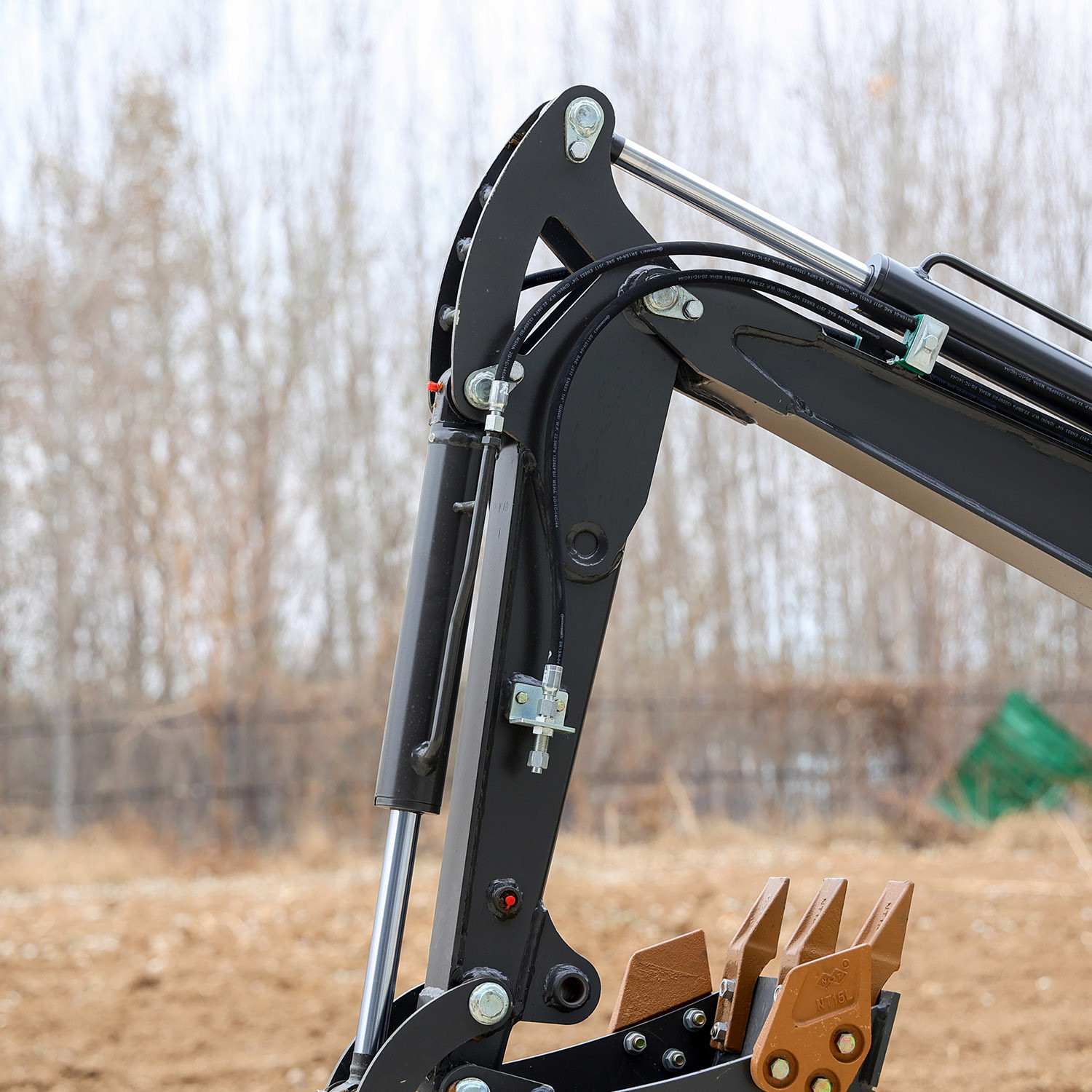

Pictures:
|
|
