Mini Excavator, Full Energy, You will become a Big Winner!
3 Years
| Ask Lasest Price | |
| Brand Name : | FULLWIN |
| Model Number : | FW18J |
| Certification : | EPA/EURO5 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 5000 Units/Year |
| Delivery Time : | 12-25 days |
1.8 T Excavator Smooth Hydraulic Pilot 1800KG Mini Excavator Agricultural Digger
Features:
1. Better quality in 1.8T class
2. Smooth hydraulic pilot operation
3. Suitable as agricultural digger, working in small farm, ranch, orchard, etc.
Description:
1. Swing boom comes as standard - Very practical function
2. Extendable tracks - Optional, and don't cost too much
3. Totally zero-tail swing - Flexible even in tight spaces
4. 200mm wider tracks - Better stability in softy condition
5. Rear door for easy maintenance

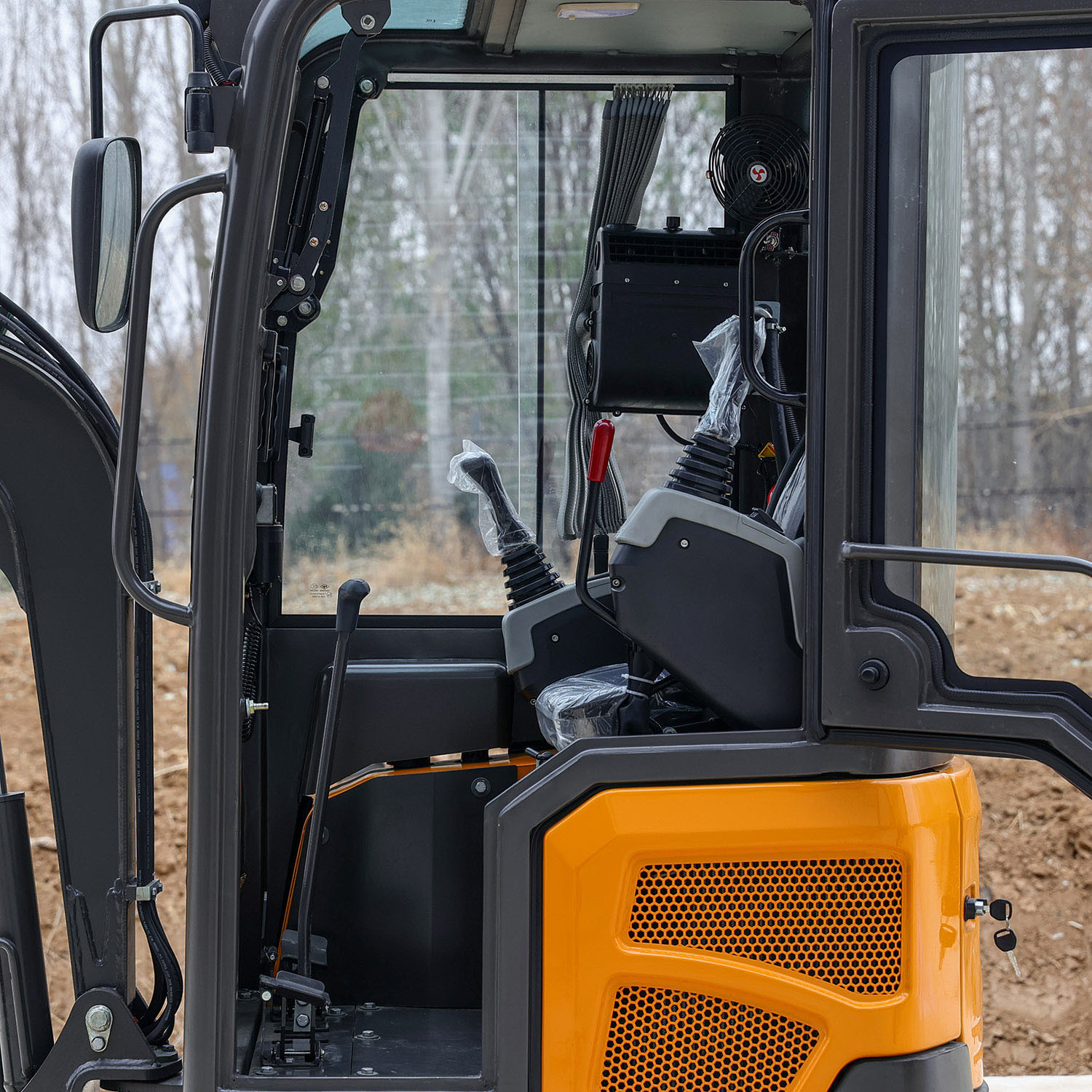

6. Standard canopy and optional fully enclosed cabin
7. One-button start
8. Radio and cabin light

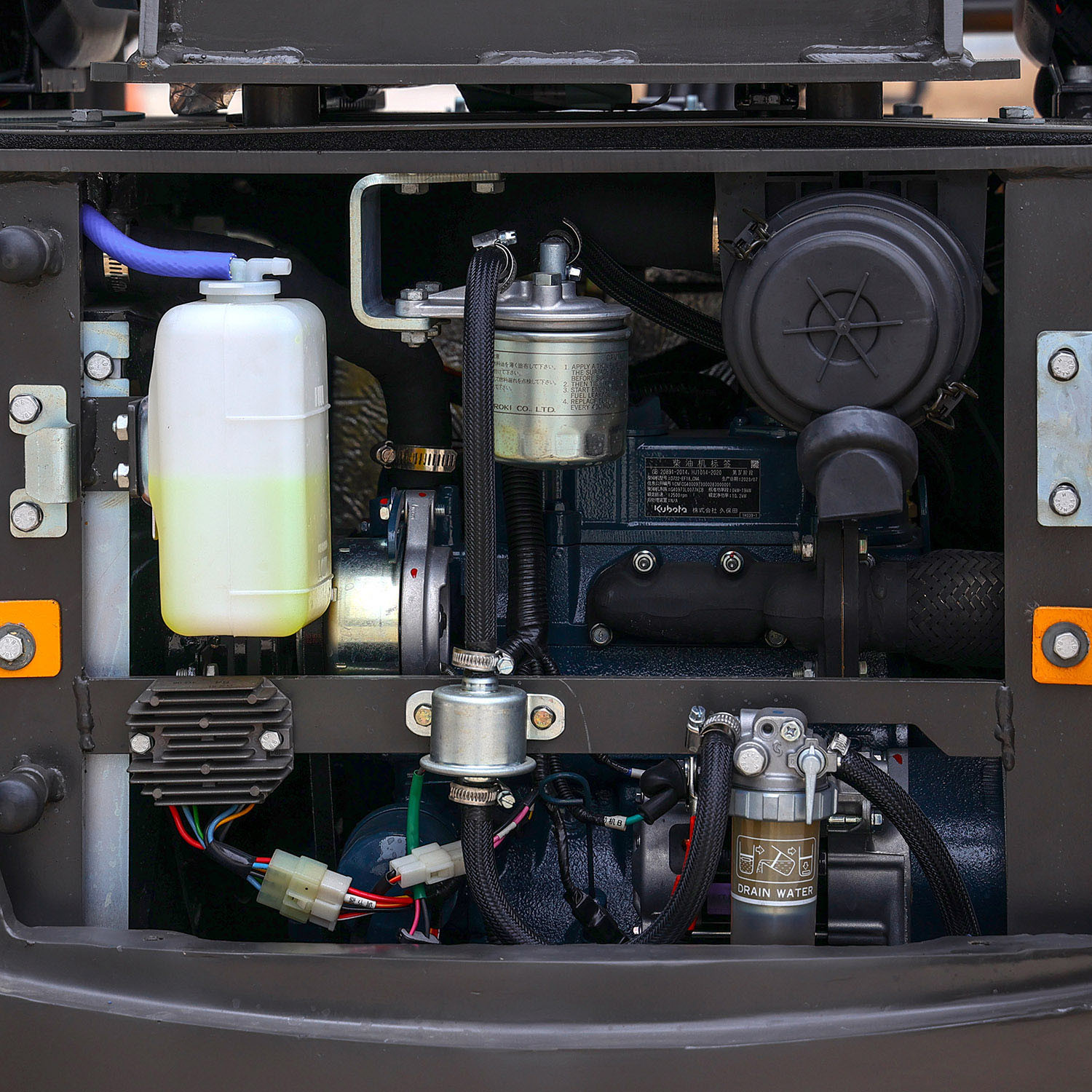

9. Engine compartment - well put together
Specifications:
| Performance | |
| Diesel Engine | KUBOTA D722 |
| No. of Cylinders | 3 |
| Rated Power | 10.2KW/2500RPM |
| Emission Standard | EPA/EURO5 |
| System Pressure | 20MPa |
| Standard Bucket Capacity | 0.025CBM |
| Standard Bucket Width (with teeth) | 400mm |
| Swing Speed | 11-13RPM |
| Gradeability | 30° |
| Max. Bucket Digging Force | 9KN |
| Max. Stick Digging Force | 5.5KN |
| Operation Range | |
| Max. Digging Height | 2955mm |
| Max. Dumping Height | 2077mm |
| Max. Digging Depth | 2017mm |
| Max. Vertical Digging Depth | 1610mm |
| Max. Digging Radius | 3529mm |
| Max. Lifting Height of Bulldozer Blade | 236mm |
| Max. Cutting Depth of Bulldozer Blade | 229mm |
| Dimensions | |
| Length | 3329mm |
| Width | 1100mm |
| Height with Cabin | 2267mm |
| Axis Distance | 1190mm |
| Gauge | 790mm |
| Min. Ground Clearance | 153mm |
FAQ:
1. What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. How about your delivery time?
Usually, we have some stock for trial or small orders, so just deliver within 7 days, while 15–25 days for
large orders and customized products.
3. How about payment?
100% T/T in advance before shipment.
4. Do you provide samples? Is it free or extra?
Yes, we could offer the sample, but it's not free.
5. Could you make it according to our special requirements?
Of course, please tell us your ideas.
Pictures:
|
|
