1000KG 1TON Mini Digger Excavator FW10F Support Hydraulic Pilot Operation

Qingdao Fullwin Machinery Co., Ltd.
Contact Now
    Buy cheap 1000KG 1TON Mini Digger Excavator FW10F Support Hydraulic Pilot Operation from wholesalers

    Buy cheap 1000KG 1TON Mini Digger Excavator FW10F Support Hydraulic Pilot Operation from wholesalers
    • Buy cheap 1000KG 1TON Mini Digger Excavator FW10F Support Hydraulic Pilot Operation from wholesalers
    • Buy cheap 1000KG 1TON Mini Digger Excavator FW10F Support Hydraulic Pilot Operation from wholesalers
    • Buy cheap 1000KG 1TON Mini Digger Excavator FW10F Support Hydraulic Pilot Operation from wholesalers
    • Buy cheap 1000KG 1TON Mini Digger Excavator FW10F Support Hydraulic Pilot Operation from wholesalers

    1000KG 1TON Mini Digger Excavator FW10F Support Hydraulic Pilot Operation

    Ask Lasest Price
    Brand Name : FULLWIN
    Model Number : FW10F
    Certification : EPA/Euro5
    Payment Terms : L/C, T/T,Western Union,MoneyGram,D/P Paypal
    Supply Ability : 5000 Units/Year
    Delivery Time : 5-12 working days
    MOQ : 1 Unit
    • Product Details
    • Company Profile

    1000KG 1TON Mini Digger Excavator FW10F Support Hydraulic Pilot Operation

    Mini Digger Excavator CE 1000KG 1Ton FW10F Diesel Gasoline Engine EPA & Euro5

    Features:

    1. Optional diesel / gasoline engine

    2. Support both mechanical and hydraulic operation

    3. Cast-iron counterweight is full 50KG

    4. Machine weight is 950KG

    5. Warranty for 12 months or 2000 hours


    Description:

    It's really a compact model, suitable for farm, greenhouse, and other narrow workplaces.

    Machine weight is totally 950KG, heavier than normal 1ton diggers

    Counterweight is full 50KG, better stability than normal 1ton mini excavators

    FW10F 1TON Mini Excavator focus on detail processing, hydraulic oil radiator, cooling fan, hose protection,

    hydraulic shut-off valves, oil gauge, safety lock, and blade-like bucket side teeth, etc.


    Specifications:

    MODELFW10F

    Diesel Engine

    KOOP, Euro5 Certified

    Gasoline Engine

    Briggs&Stratton, Euro5 Certified

    Rated Power

    7KW/3000RPM

    Machine Weight

    950KG

    Operating Weight

    1000KG

    Bucket Capacity

    0.025m³

    Bucket Width

    400mm

    Travel Speed

    3km/h

    Operation Mode

    Mechanical/Hydraulic Operation

    Gradeability

    30°

    Fuel Tank Capacity

    10L

    Hydraulic Oil Tank Capacity

    16L

    Dimension (L*W*H)

    2200*930*2250mm

    Wheelbase

    910mm

    Max.Digging Depth

    1630mm

    Max.Vertical Digging Depth

    1370mm

    Max.Digging Height

    2750mm

    Max.Unloading Height

    1960mm

    Max.Digging Radius

    2900mm

    Max.Ground Level Digging Distance

    2100mm

    Min.Radius of Gyration

    1300mm

    Dozer Blade Max.Cutting Depth

    210mm

    Dozer Blade Max.Lifting Height

    180mm


    FAQ:


    1. What's your MOQ?

    Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.


    2. How about your delivery time?

    Usually, we have some stock for trial or small orders, so just deliver within 7 days, while 15-25 days for large orders and

    customized products.


    3. How about payment?

    100% T/T in advance before shipment.


    4. Do you provide samples? Is it free or extra?

    Yes, we could offer the sample, but it's not free.


    5. Could you make it according to our special requirements?

    Of course, please tell us your ideas.


    Pictures:

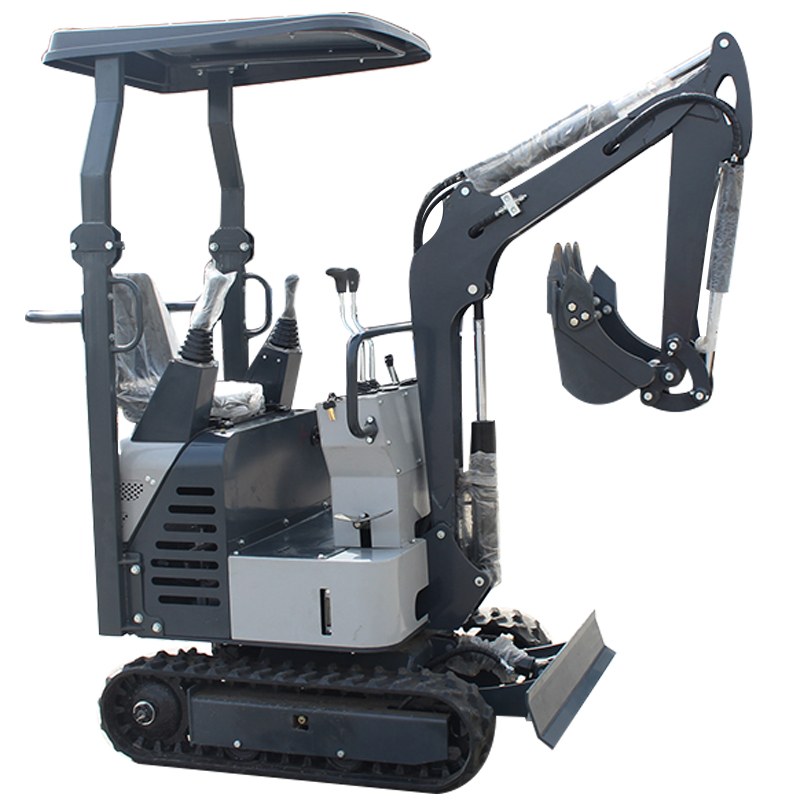

    Quality 1000KG 1TON Mini Digger Excavator FW10F Support Hydraulic Pilot Operation for sale
